How to Move an ATM Safely: A Step-by-Step Guide for Store Owners and ATM Operators

Introduction: An ATM Is a Safe With a Screen

Whether you own a few ATMs in convenience stores, run a bar or gas station with a machine in the corner, or you're the operator who services them, sooner or later an ATM has to move. Maybe the store is remodeling, the location changed, or a better spot just opened up near the door. The tricky part is that a freestanding ATM is really a heavy safe with a computer on top. Much of its weight sits low in the vault, it's often bolted down, and it holds cash and sensitive hardware. This guide walks through how to move an ATM safely, step by step, and which Anderson Dolly configuration fits the job.

I. Know Which Kind of ATM You Have

Not every ATM is a do-it-yourself move. Start by figuring out what you're working with:

  • Freestanding retail ATMs: The cabinet-style units you see in convenience stores, bars, and gas stations. These stand on their own base and are often anchored to the floor with bolts. This is the type this guide covers.
  • Through-the-wall ATMs: Units built into a wall or storefront, often with a vault behind them. Pulling one out of the wall is a job for your ATM service provider or a professional installer. A dolly can help once the unit is out and sitting on a flat floor, but it doesn't replace the removal work.
  • Drive-up and outdoor kiosks: These are typically set in concrete or on a pedestal outdoors. Leave them to a professional rigging or ATM installation crew.

Then gather the details that decide how the move will go:

  • Actual weight: Check the manufacturer's spec sheet, the installation manual, or the label on the cabinet. Weight varies a lot by model and vault rating. Don't guess.
  • How it sits on the floor: Does the cabinet rest flat on the floor or on a base, or does it stand on leveling feet? Measure the gap between the floor and the bottom edge of the cabinet.
  • Footprint and route: Measure the cabinet's width and depth, then every doorway, aisle, and turn between the old spot and the new one. Each Anderson Dolly is 23" wide, so it fits through standard doorways.

II. Before You Move: The ATM-Specific Checklist

An ATM move starts well before anyone touches the cabinet:

  • Talk to your processor or service provider first: Let them know the machine is moving. If the ATM is under a placement or service agreement, check what it says about relocating the machine, and plan for any reprogramming or re-activation the new spot needs.
  • Remove the cash: Never move an ATM with cash inside. Have whoever is authorized to access the vault remove the cassettes and follow your normal cash-handling procedures.
  • Power down the right way: Shut the machine down following the manufacturer's procedure, then disconnect power and the phone, network, or wireless connection.
  • Lock everything: Close and lock the vault and the upper cabinet so nothing can swing open or shift during the move.
  • Remove the floor anchors: Many freestanding ATMs are bolted to the floor for security. Locate and remove every anchor bolt, following the manufacturer's instructions, before you try to lift. Never try to break a machine free of its anchors with a dolly.
  • Prep the new location: Make sure power and connectivity are ready at the new spot, and plan for re-anchoring the machine once it's in place.

III. Why Tilting an ATM Is a Bad Idea

The traditional way to move an ATM is to tip it back onto a hand truck or appliance dolly and balance it on two wheels. That puts a lot of weight in your hands and depends on you holding the balance point the whole way across the floor. If the load gets past the wheels, it's falling, and you're the one in front of it. Tilting also means the screen, card reader, and keypad are leaning toward the floor the entire time.

A no-tilt system keeps the ATM upright. You aren't holding the weight. You just push and steer, and the machine stays in the same position it normally stands in.

IV. How to Move an ATM With the Anderson Dolly

The Anderson Dolly is a patented ratcheting split-dolly system that lifts the ATM straight up without tilting it:

  1. Position: With the anchors removed, place one dolly on each side of the cabinet.
  2. Protect: Put the included foam pads where the straps and dollies contact the cabinet, especially around the screen and fascia.
  3. Strap: Secure the included ratchet straps around the cabinet.
  4. Crank: Work the ratchets and the dollies lift the ATM 1.5" off the ground. No tilting and no manual lifting.
  5. Roll: Move the machine upright to its new spot, even in tight store aisles.
  6. Set and re-anchor: Lower it into place, remove the dollies, and re-anchor and reconnect it according to the manufacturer's instructions.

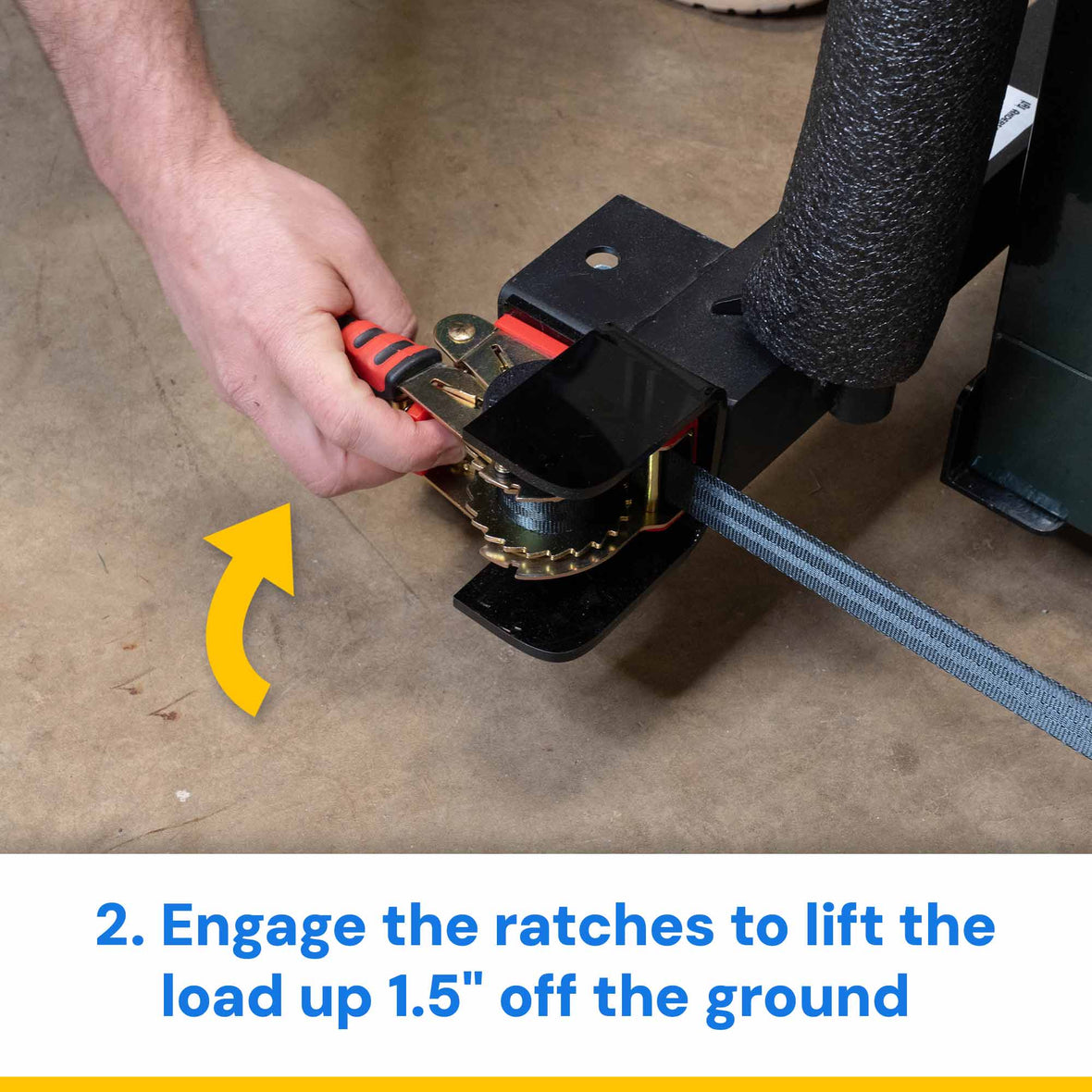

Hand engaging the Anderson Dolly ratchet to lift the load 1.5 inches off the ground

Confirmed specs from the product page:

  • Capacity: 1,600 lbs per pair (3-inch and 5x2 heavy-duty models) or 1,300 lbs per pair (5-inch model)
  • Raised height: 1.5 inches
  • Dolly weight: 25 lbs each (50 lbs for the pair)
  • Dimensions (each dolly): 29.5" H x 23" W x 5" D, so it fits through standard doorways
  • Toe plate: 14" W x 2" D, with an adjustable-height upgrade available
  • Included: Pair of dollies, 4 casters, foam protection pads, two 6-ft heavy-duty ratchet straps, and one cam buckle strap
  • Power: Fully manual. No hydraulics or electric jacks.
  • Made in the USA, with a lifetime parts warranty against manufacturing defects

V. Which Configuration Should You Choose for an ATM?

3-Inch Casters, 1,600 lbs: For ATMs That Sit Flat

Many freestanding ATMs rest flat on the floor or on a low base, which makes the 3-inch Anderson Dolly ($599, with the adjustable toe plate) the natural fit. It's built for items that sit close to the ground, its lower profile gives you better control and tighter turning in store aisles, and it carries the full 1,600 lb rating. It's at its best on smooth, flat floors.

5x2 Heavy Duty, 1,600 lbs: For Heavier ATMs on Feet

If your ATM stands on leveling feet and its spec sheet puts it on the heavy side, the 5x2 Heavy Duty Anderson Dolly ($649) pairs larger casters with the full 1,600 lb rating, and the larger wheels roll more easily over door thresholds and floor seams.

5-Inch Casters, 1,300 lbs: For Lighter Units on Feet

For a lighter ATM on feet, or if you also move vending machines and appliances on legs, the 5-inch Anderson Dolly ($599, with the adjustable toe plate) is the versatile choice. It's rated at 1,300 lbs per pair, so confirm your machine's real weight falls well under that.

Quick recommendation: ATM sits flat on the floor? Choose 3-inch. ATM on feet and on the heavy side? Choose the 5x2 Heavy Duty. Lighter ATM on feet, or a mixed route with vending machines? Choose 5-inch. Moving vending machines too? See our vending machine dolly buying guide.

VI. ATM Moving Day: Best Practices

  • Move during closed hours: An empty store means a clear path, no customers in the aisle, and less attention on a machine that normally holds cash.
  • Plan a flat, level route: The Anderson Dolly is made for flat, level floors only. Never use it on ramps or inclines, and clear the path before you lift.
  • No stairs, ever: The Anderson Dolly can't go up or down steps. If any part of your route includes stairs, hire a professional ATM or equipment mover for that move.
  • Leave building-to-building moves to the pros: If the ATM is going to a new address, loading it onto a truck is a job for a professional mover. The Anderson Dolly is for the flat, level, indoor part of the move.
  • Stay low and use a spotter: You only need 1.5 inches of clearance to roll. For tight turns, end caps, and doorways, a second person watching the corners is always smart.

VII. Frequently Asked Questions

Q: Can one person move an ATM?
A: Once the cash is removed and the anchors are out, the Anderson Dolly is designed for one-person operation on flat, level surfaces. For tight spaces or long routes, bring a spotter.

Q: Do I have to tilt the ATM to move it?
A: No. One dolly goes on each side, and the ratchets lift the machine straight up 1.5". It stays upright the entire time.

Q: Which Anderson Dolly is best for an ATM?
A: For ATMs that sit flat on the floor, the 3-inch model. For heavier ATMs on feet, the 5x2 Heavy Duty. For lighter units on feet, the 5-inch model. Always check the machine's real weight first.

Q: Can it go up stairs or ramps?
A: No, never. It's built for flat, level floors only. It can't go up or down stairs, and it should never be used on ramps or inclines. If your route has stairs, hire a professional mover.

Q: How much weight can the Anderson Dolly move?
A: The 3-inch and 5x2 Heavy Duty models are rated at 1,600 lbs per pair. The 5-inch model is rated at 1,300 lbs per pair.

Q: What if it's not the right fit?
A: Anderson Dolly offers free returns within 30 days of delivery and a lifetime parts warranty against manufacturing defects.

Ready to Make Your Next ATM Move Easier?

Skip the tilting, the extra helpers, and the back strain. Shop the Anderson Dolly, choose the caster size that matches how your ATM sits, and move it upright with confidence.
